Most people get the mounting right and the planning wrong. The sensors go up straight, the app pairs on the first try. Three weeks later the hallway detector is firing every afternoon, because nobody noticed the sun hits that wall at four o’clock.
Security system installation comes down to four things: planning sensor coverage, mounting the equipment, setting alert rules, and confirming that every device reports correctly. The first of those takes the longest and gets the least attention. This home security system installation walkthrough speaks to homeowners or renters weighing a DIY kit against professional help.
A basic wireless kit often goes in within one to two hours. Larger homes, extra cameras, awkward mounting surfaces, or troubleshooting will push that out considerably. Budget an afternoon for the security alarm installation rather than an hour, because the testing at the end is the part worth doing slowly.
Home Security System Installation: Quick Steps
● Map doors, reachable windows, pathways, and any area needing camera coverage.
● Check connectivity, power, lease or HOA rules, permits, monitoring terms.
● Place the hub, then pair contact sensors, motion detectors, keypad, cameras.
● Configure modes, user access, notifications, any smart-home links.
● Test every device, document the results, set a maintenance reminder.
Safety Precautions, Tools, and Materials
Gather a drill with suitable bits, a stud finder, a level, a screwdriver, a stable ladder, painter’s tape, a smartphone, and the manufacturer’s installation instructions. Keep a pencil, a measuring tape, and spare batteries nearby. For a wired installation, add only the tools or cable the system maker specifies, since low-voltage work is never a reason to touch mains wiring.
Use the ladder on firm, level ground without overreaching. Before drilling, check for hidden electrical wires, plumbing, and structural components. Turn off the relevant circuit before any work near wiring, then hire a qualified electrician for mains-voltage tasks. If you cannot tell what sits behind a wall, pick another mounting point or ask a professional.
The planning allowances below are practical estimates that shift with device count, home layout, and mounting conditions. They are not manufacturer guarantees.
| Task | Planning allowance |
| Inventory, label, map devices | 15 to 30 minutes |
| Hub and app setup, including account security | 15 to 30 minutes |
| Contact sensors, keypad | 20 to 45 minutes |
| Motion sensors, cameras | 30 to 90 minutes |
| System test and user walkthrough | 15 to 30 minutes |
Printable checklist: read the manuals, identify entry points, check Wi-Fi or cellular signal, confirm permissions. Then label devices, install batteries, pair each sensor, configure access codes. Finish by testing alerts, then record device locations and support contacts.
DIY vs Professional vs Hybrid Installation
The honest answer is that most people reading this can handle home security system installation themselves. Manufacturers design wireless kits for owner installation, so the hard parts are patience and planning rather than skill. A DIY security alarm system asks for an afternoon, not a trade qualification.
A DIY security alarm system suits anyone comfortable with an app, basic mounting, and systematic testing. A professional visit makes more sense where the home has existing hardwired sensors, complex wiring, several buildings, or accessibility needs. The same applies to a system tied to other life-safety equipment. Hybrid installation splits the work, with a professional designing or wiring the system while the owner mounts wireless devices.
Where a professional security installation genuinely earns its fee is the handover. A good installer walks the house with you, explains why each sensor sits where it does, then makes you arm and disarm it yourself before leaving. That conversation is worth more than the drilling.
| Approach | Up-front cost | Time and effort | Wiring | Support | Best for |
| DIY | Equipment and optional monitoring, with your own time as the labor | A few hours for a basic kit, longer for larger homes | Usually wireless or peel-and-stick | Manufacturer support, with placement or testing left to you | Smaller homes, renters with permission, confident users |
| Professional | Equipment and quoted installation, plus possible service or monitoring charges | Appointment and site work, so ask for a written scope | Wired, wireless, or mixed | Installer configures the system, then explains it | Complex layouts, existing wiring, handover support |
| Hybrid | Depends on which tasks are outsourced | Shared between owner and installer | Flexible | Shared, so define who supports what | New builds, renovations, partial retrofits |
As a shortcut, DIY is usually enough when you can follow device instructions, your layout is simple, and every zone can be tested. Compare professional quotes if you need concealed wiring, awkward exterior mounting, integration with existing equipment, or help with permits.
Ask for itemized equipment, labor, monitoring, maintenance, warranty, and cancellation terms. The False Alarm Reduction Association tells consumers to ask the full cost of the system, whether they are buying or leasing, and what annual service costs. It also raises what happens if the monitoring company gets sold.

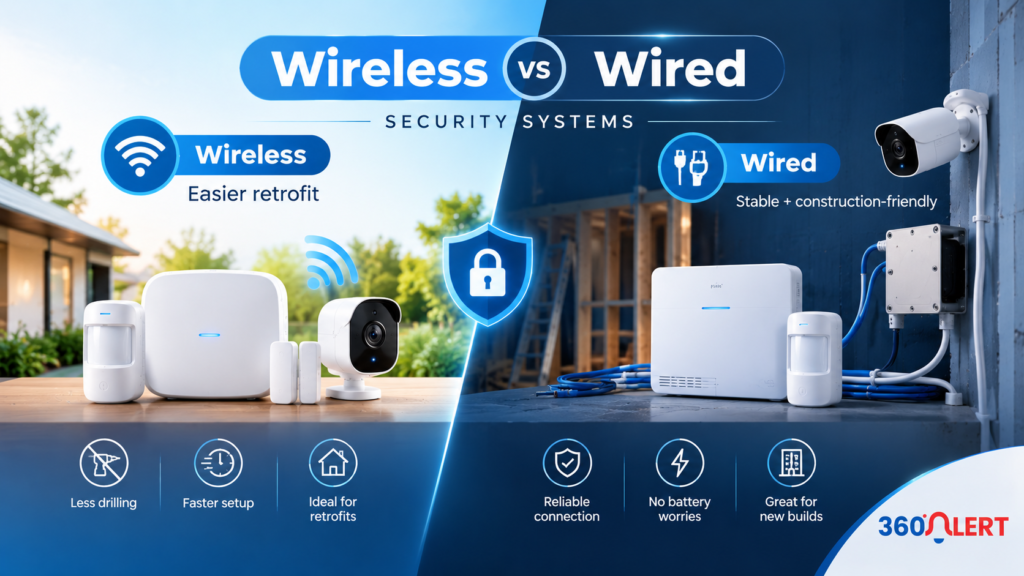

Wired vs Wireless Security System Installation
When comparing alarm system installation options, look past a sensor’s advertised range. What matters is dependable communication and backup power maintenance. How much construction the property can tolerate.
Wireless systems cut drilling, which simplifies retrofits, though they depend on batteries and radio links. Wired sensors avoid most battery changes, making them a good fit for new construction, but cable routes or panel compatibility can complicate things. Either design needs a plan for communication loss. Ask whether the system supports cellular backup, then find out which functions still work offline.
● Wiring basics: use the cable gauge, circuit design, zone configuration, end-of-line resistor values that your panel manufacturer and local code specify, because these are system-specific. New construction is the easiest time to plan concealed low-voltage routes, service loops, camera or network locations. The installer should label every cable, then document the zones.
● Smart-home radios: Z-Wave or Zigbee are device-network technologies; Matter is an interoperability standard; Thread is a low-power mesh network. Compatibility depends on the hub, the device, the software version. Supported features, so check the manufacturer’s list before buying.
Wireless security system installation: what actually changes
Wireless security system installation removes the cable runs, which is why it dominates retrofits. In their place, it leaves two standing jobs: keeping batteries fresh, keeping every device inside reliable radio range. Neither is difficult, though both need a calendar rather than good intentions.
● Test real range, not advertised range: check each device from its final mounting position with the hub already sitting where it will live. Published ranges assume open air rather than brick, foil-backed insulation, or a run of kitchen appliances.
● Battery discipline: record each device’s battery type during the install, then log replacement dates somewhere you will actually look. A contact sensor with a flat cell is an open door that reports nothing.
● Interference: keep the hub clear of large metal objects, and give it distance from other 2.4 GHz equipment where the system shares that band.
● Behavior on signal loss: ask what a sensor does when it cannot reach the hub. Some devices retry silently, whereas others raise a supervision fault you can see in the app.
Plan Your Home Security Systems Installation
Careful home security systems installation starts with a floor plan reflecting how people actually use the house. Sketch each level, mark likely entry points, note devices, outlets, router access, and any area where walls or metal may weaken a wireless signal.
Map entry points, choke points, and blind spots
Start with exterior doors, garage-to-house doors, reachable ground-floor windows. Sliding patio doors deserve their own look, since the lock, the track, and the glass each fail differently, which our guide to securing sliding doors covers in detail. Add likely movement routes such as hallways or stair landings, then treat interior sensors as a second layer rather than assuming one detector covers every room.
Sensors are only one layer. The North Carolina Department of Public Safety recommends strong door frames, protected hinges, and a deadbolt on any door that lacks one. It also advises exterior lighting around corners and garages, with glass break sensors on windows. Keep landscaping short enough that nobody can hide in it.
Walk the plan from an intruder’s likely approach, and then along your own daily routes. Mark blind spots, pet paths, direct sun, vents, reflective glass, and anywhere a camera would record a neighbor’s private space.
Check Wi-Fi, cellular, and power
Test the actual signal where the hub or cameras will sit, not beside the router. Confirm each device’s connectivity requirements, then check the manufacturer’s guidance on upload capacity if cameras send video to the cloud.
A mesh node may improve coverage, while Power over Ethernet can simplify power and data for compatible wired cameras. Confirm whether cellular backup is included, optional, or unavailable. Learn what happens during an internet or power outage. Avoid hiding the hub in a metal cabinet, or anywhere someone outside can reach it.
Check permits, alarm ordinances, HOA, and landlord rules
Rules differ by city and by property type. Ask the local authority whether registration or a permit is required, and whether false-alarm fees apply. The FARA consumer guide states that many public safety agencies require the alarm user or the alarm company to obtain a permit before operating a system.
Renters should get written landlord approval before drilling or installing exterior equipment. HOA rules may also cover cameras, doorbell devices, visible cabling, and exterior sirens.
Choose monitoring and review the terms
Self-monitoring sends alerts to your phone, whereas professional monitoring routes signals to a monitoring center under a service plan. Compare what happens during internet loss, who contacts emergency services, how alerts get verified, service hours, cancellation rights, equipment ownership.
Ask about contract length, activation, service calls, early termination. Read the entire agreement before signing, since the consumer guide warns that cancellation terms vary widely.
Design a security system zoning layout
A zone is a named area or device telling you where an alarm started. FARA defines it as pinpointing the specific location from which an alarm signal is transmitted. Use plain labels such as “front door” or “upstairs hall,” then separate entry sensors from interior motion or environmental detectors where the system permits. Keep a written map with device names, test dates, and any zone you deliberately bypassed.

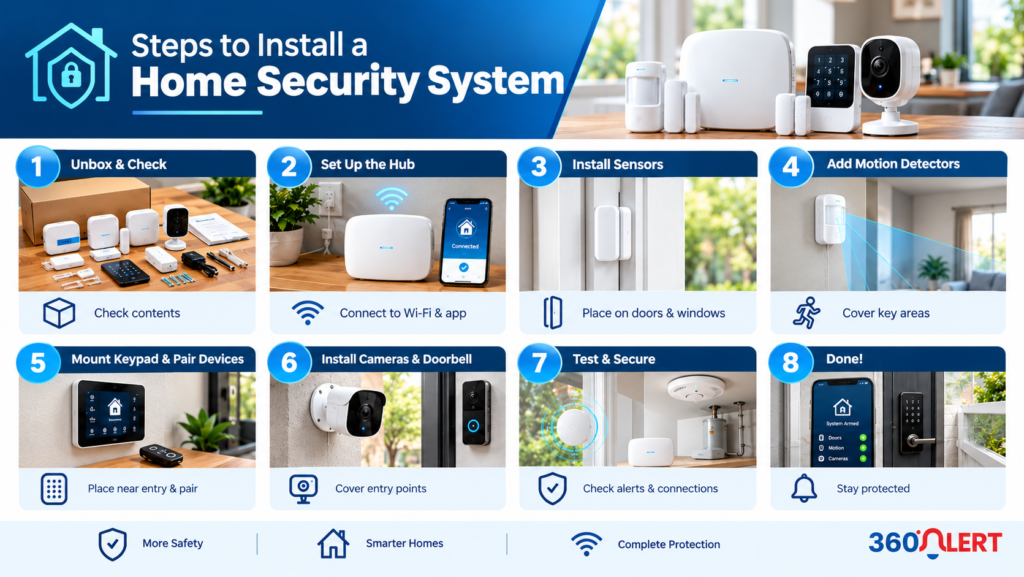

How to Install a Security System, Step by Step
Pair and test each device in the room where it will actually operate. Pairing everything on the kitchen table is faster. It also hides the exact problem you need to find: the sensor that works beside the hub, then fails through two walls.
Verify the whole system in its normal armed modes afterward. Product manuals always take precedence over the generic steps below.
1. Unbox, inventory, and label
Lay the equipment on a clean surface, match each item to the packing list, and install batteries as directed. Label sensors with painter’s tape naming their destination, such as “kitchen window.” Keep serial numbers and warranty details in a secure record. Hold on to the packaging until pairing is finished.
2. Set up the control panel or base station
Choose a central location with stable power and the required network signal, away from easy reach of an exterior door or window. Connect the unit with the supplied adapter, then follow the app instructions, scanning the device code if prompted. Create a unique administrator credential before you invite household members.
3. Install door and window contact sensors
Clean the mounting surface, then align the sensor with its magnet on the same frame as instructed. The two parts must register as closed when the opening is shut. Many kits expect them within roughly an inch of each other, though the allowable gap varies by product, so use the figure in your manual.
Test the sensor from the app or panel after mounting. Confirm the tamper switch is not held open, then make sure the door still closes freely.
4. Install motion detectors
Choose a high-traffic spot with a clear view of the intended path, ideally a corner, since corner mounting reduces blind spots. Hallways or staircases work well, because anyone moving through the house has to cross them. A mounting height of roughly 6 to 8 feet is a common starting point, though every manual states its own figure, so use that one.
Avoid direct sunlight, heating vents, fireplaces, moving curtains or plants, all of which contribute to false alarms. For homes with pets, use a pet-immune setting only as directed, then test it against the animal’s normal movement. Pet immunity never guarantees freedom from false alarms.
5. Mount the keypad and pair the key fob
Place the keypad near a commonly used entry at an accessible height, where a visitor outside cannot watch the PIN being entered. Pair key fobs one at a time, assigning access only to people who need it. Keep a secure record of who holds credentials, then remove access once it is no longer needed.
6. Install cameras and a video doorbell
Aim cameras at your own entrances using the narrowest field of view that serves the purpose. Check glare at different times of day, night illumination, Wi-Fi strength, and whether the frame captures sidewalks or neighboring windows. If you are still deciding between wired and battery models, our explainer on how wireless security cameras work covers the trade-offs in power, storage, and signal.
Follow the product’s surface-specific mounting instructions, then use its ingress-protection rating to judge suitability for the location. Mounting outdoor cameras about 10 to 12 feet high keeps them out of arm’s reach. Treat that as a starting point, verifying that the image stays usable at the chosen angle.
7. Add glass-break and environmental sensors
Place a glass-break detector according to its listening range and the room-layout guidance in its manual. Install smoke or carbon monoxide alarms to local code, following the alarm maker’s instructions. Never substitute a security-system sensor for a required life-safety alarm. Put water-leak sensors near likely sources such as a water heater, where they can be heard and serviced.
8. Add sirens, smart locks, and cable concealment
Test indoor and outdoor sirens at the approved level, following local noise rules, then seal exterior penetrations with suitable weatherproofing. Pair a smart lock only if the platform supports that exact model, setting a recovery plan in case of lockout. On wired systems, secure every cable without pinching it or blocking service access.
Five Mistakes That Cause Most Problems Later
Most alarm system installation problems are not equipment faults. They are placement decisions that looked fine on the day. These are the ones that send people back up the ladder a month later.
● Mounting the magnet on the door instead of the frame. It works at first. Then the door settles, the gap widens past the tolerance, and the system reports a fault every time the heating comes on. Check the gap with the door both open and firmly shut.
● Put the hub where the Wi-Fi is strongest for you. The hub needs signal, but it also needs to be out of sight and out of reach. A base station on the hall table beside the front door is the first thing an intruder sees, and the first thing they unplug.
● Aiming a motion sensor down a hallway instead of across it. Passive infrared detectors read movement crossing their field far better than movement coming straight at them. A sensor facing the length of a corridor will notice someone late.
● Testing only in Away mode. Stay and Night modes usually disable interior motion zones. If you never test them, you find out which zones are off on the night you actually need them.
● Skipping the outage test. Pulling the power and the internet for five minutes tells you more about the system than any spec sheet. Do it on a weekday afternoon, with monitoring in test mode, not at midnight during a storm.
Configure and Program Your System
Set entry and exit delays that let household members use their usual doors without leaving long unprotected windows. Create distinct Stay, Away, Night modes if the system supports them, deciding which motion zones stay active in each.
Give every person an individual code instead of sharing one household PIN. Turn on notifications for whoever is responsible for responding, avoiding alert schedules that hide important events. Geofencing is convenient, though it should never be the only way the system arms or disarms.
Connect Alexa, Google, Apple, or other smart-home services only after checking the supported controls and privacy settings. Limit integrations to the ones you use, review the permissions they request, then confirm that a voice command cannot disarm the alarm without proper authentication.
Secure the System Itself
A security system connected to the internet is also an attack surface. FTC consumer guidance puts the router first, because all your connected devices reach the internet through it. Change the default administrative username, password, network name, choosing something that does not include your own name, address, or router brand.
Enable encryption in the wireless security settings, using WPA3 where supported, and the strongest compatible option otherwise. Use a unique password for the alarm account itself, then turn on two-factor authentication wherever it is offered.
Install firmware updates through the manufacturer’s official app, checking their site periodically for newer versions. If your router allows it, put cameras and other smart devices on an IoT or guest network. Disable UPnP along with unsolicited port forwarding unless a supported feature requires them. Never expose a camera interface directly to the public internet.
Test the System: Alarm System Testing Checklist
Testing is the step that decides whether a home security system installation was any good. Before a live test, put professional monitoring into test mode or contact the provider, so test signals do not trigger an unintended dispatch. Follow the service’s process, then confirm when testing has finished.
● Open and close every protected door or window, confirming that the correct zone appears.
● Walk through each motion detector’s coverage, looking for missed areas.
● Test keypad arming, disarming, entry and exit delays, and every programmed mode.
● Confirm the app receives alerts, with the contact list correct.
● Check camera live view, recording, night image, notifications.
● Following the manual’s procedure, test operation during internet loss and power loss, noting which backup features remain.
● Restore normal service, confirm monitoring is out of test mode, save the date, result, and any faults.
Never test smoke or CO sensors with an open flame, or any other unsafe method. Use only the maker’s approved procedure. FARA lists employee error, pets, wildlife, movable items, defective doors or windows, faulty equipment, inadequate training, and poor maintenance among the usual causes of false alarms. Training household members and recording test results cuts avoidable callouts.
How Much Does Alarm System Installation Cost?
There is no single defensible national price for security alarm installation. What you can do is price each line on its own, because any credible quote breaks into labor, equipment, monitoring, and local fees. Three of those four have published figures you can check for yourself.
Labor: what an installer’s hour is worth
Federal wage data puts a number on the labor line. The U.S. Bureau of Labor Statistics recorded a median hourly wage of $27.13 for security and fire alarm systems installers in May 2023. The middle half of the trade earned between $21.91 and $31.52 an hour. At the edges, the tenth percentile sat at $17.69, the ninetieth at $38.29.
That is the technician’s wage, not the rate on your invoice. A company’s billed hour also carries overhead, travel, insurance, warranty coverage, and profit. Treat the wage figure as a floor for sanity-checking a labor line, which makes an unexplained four-figure charge on a half-day job worth questioning.
Monitoring: the line that quietly becomes the biggest number
Equipment is a one-off purchase. Monitoring is not, and it is usually where total alarm system installation cost gets decided. The Minnesota Attorney General warns that some alarm contracts require payments of $50 a month or more for as long as five years. At that rate, a five-year term commits around $3,000 before any equipment is counted.
Do that arithmetic before signing rather than afterwards. Multiply the monthly fee by the full contract term, then ask what early termination costs. A cheap kit on a long contract often outspends a dearer kit running month to month.
Permits and false alarm fees: small until they are not
Local charges are the line most cost guides skip, even though cities publish them charges $40 a year for a residential alarm permit. Its false alarm fines then climb with each call:
● $50 each for the third through fifth false alarm
● $100 each for the sixth and seventh
● $250 each for the eighth and ninth
● $500 each from the tenth onwards
Those schedules differ sharply between cities. These charges are $25 to register a system and $20 a year to renew it. Its false alarm penalties are steeper, starting at $205 for the second chargeable call and reaching $308. An unregistered system there pays $150 on the first offense.
Two things follow from that gap. Look up your own municipality’s schedule rather than trusting a national average. Then treat thorough testing as a cost control measure, since the fines attach to repeat false alarms rather than to the install itself.
Build the quote line by line
Request a written quote with separate lines for equipment, installation, monthly monitoring, video storage, activation, service visits, batteries, permits, cancellation charges.
| Budget line | DIY | Professional | Questions to ask |
| Equipment | A kit plus any add-on sensors or cameras | Purchase or lease, so confirm ownership | What is included, what is optional? |
| Installation | Usually no installer labor charge | Labor, travel, any wiring or building work | Is the quote fixed, itemized, inclusive of tax? |
| Monitoring | Optional subscription, or self-monitoring | Often optional or bundled | What are the contract term, cancellation rules, service levels? |
| Video storage | May need a separate plan or local storage device | May be bundled or billed separately | What are the retention period, export options, post-cancellation terms? |
| Other charges | Batteries, replacement parts, permit | Activation, service, early termination, permits | Who pays false-alarm fees, and when? |
Home-insurance discount: ask your insurer whether a monitored alarm or specific certified equipment qualifies. Never assume a discount exists, since eligibility varies by insurer, policy, and system. Request whatever paperwork they need, such as an installation certificate, then weigh any premium savings against the ongoing monitoring cost.
Burglar Alarm Installation: Whole-House Coverage
A layered burglar alarm installation combines perimeter alerts at likely entry points, interior detection along movement paths, and environmental sensors for hazards such as smoke or leaks. No single sensor type covers every risk, so plan overlapping detection, then verify every zone.
Research collected by the Center for Problem-Oriented Policing finds that burglar alarms increase a burglar’s risk of detection. They deter best when the alarm is overt, which is why visible signage matters. Target hardening works on the same principle, simply making entry harder.
● Renters and apartments: favor removable mounts, confirm permission, avoid drilling or exterior cameras without approval.
● New construction: plan low-voltage cable, PoE, power, network locations before the walls close.
● Detached garages and multi-story homes: test signal at the farthest devices, adding compatible repeaters only where needed.
● Pet owners: tune, then test motion sensors around actual pet movement.
● Seniors: prioritize simple controls, accessible placement, clear alert routing, plus a household member who can help maintain the system. A burglar alarm answers a different question from a personal alarm, so read how medical alert systems work if the real concern is a fall rather than a break-in.
Troubleshooting Common Installation Problems
| Problem | Likely checks and fixes |
| Sensor will not pair | Confirm battery orientation and pull-tab removal, bring the sensor close to the hub, recheck the app’s device-adding steps. |
| Hub appears offline | Check the outlet, router, network credentials, and service status. Restart only as directed, then confirm cellular backup if included. |
| False alarms | Review the event log and triggering zone, then check sensor alignment, pets, vents, sunlight, loose doors, delay settings. |
| Low-battery chirp | Identify the specific device, replace the battery with the manufacturer-specified type, then clear the alert before testing. |
| Camera will not record | Check power, Wi-Fi or upload connection, privacy settings, storage subscription, recording schedule, motion zone. |
| Weak signal | Move the hub or add a compatible extender, reduce obstructions, then retest from the device’s final location. |
Zone bypass: bypass only a genuinely unavailable device. Doing so leaves that area unprotected, so restore it promptly after repair. Record the reason, then confirm system status before arming.
Maintenance Schedule
| Frequency | Maintenance task |
| Monthly | Review system status and alerts, inspect visible sensors or camera views, confirm household members know how to arm the system. |
| Quarterly | Run a supervised device test, check recordings and notification delivery, review users, access codes, and bypassed zones. |
| Yearly | Review the floor plan and coverage, check monitoring or permit details, inspect mounts, verify backup-power condition per the manual. |
Install firmware updates promptly, following the manufacturer’s instructions for battery replacement and end-of-life equipment. Keep a dated maintenance log. When replacing a backup battery, use only the specified type, disposing of the old one under local requirements.
Privacy and Legal Considerations
Aim cameras so they capture what you need without recording neighbors’ windows or private spaces. Audio recording laws vary by jurisdiction, with some requiring consent, so check local and state law before enabling audio.
Use visible signage where required, obtaining landlord or HOA permission when rules apply. Set retention and sharing limits, protect the account with strong authentication, and avoid posting recordings publicly when they show identifiable people.
How to Compare DIY Home Security Systems
Product lines and pricing change constantly, so a list of brand names dates quickly. What does not change is the set of questions worth asking before you buy. Run any system you are considering through these:
● Equipment ownership: do you buy the hardware outright, or lease it? Leased equipment usually has to go back when you cancel.
● Contract terms: how long is the commitment, what does cancellation cost, what happens if the company is acquired?
● Monitoring options: can you self-monitor, switch to professional monitoring later, or move between plans without new hardware?
● Expandability: how many sensors does the hub support, and can you add other manufacturers’ devices?
● Backup paths: is cellular backup included, optional, or unavailable? What still works during an outage?
● Video storage: local storage, cloud subscription, or both? What is the retention period, and can you export clips?
● Privacy controls: who can access your footage, how is it encrypted, what happens to recordings after you cancel?
Verify all of this directly with the provider rather than from a review page, because terms differ by region and change without notice.
Glossary
● Panel: the alarm’s central controller and user interface.
● Hub: the base station linking compatible sensors to apps.
● Contact sensor: a paired set of components detecting an opening when the magnetic link separates.
● Zone: a named device or area reported by the alarm system.
● Supervision: periodic communication checks that help identify an unreachable device.
● Tamper: a switch or alert showing that a device enclosure may have been disturbed.
● Dual-path: alarm communication over two routes, commonly internet and cellular.
● ECV: Enhanced Call Verification, a procedure adding contact attempts before dispatch, with availability varying locally.
● PoE: Power over Ethernet, carrying power and data over compatible Ethernet cabling.
● Geofence: a location boundary an app uses to trigger an automation.
The Bottom Line
If you take one thing away from everything above, make it the planning. Start with the home’s entry points and signal conditions, then match device placement to how the household actually lives. Equipment choice matters far less than where you put it.
The system people end up trusting is rarely the most expensive one. It is the one that has been tested properly, whose alerts reach someone who will act on them. It is also the one nobody has quietly started ignoring, because it does not cry wolf every afternoon.
DIY is a practical path for a straightforward wireless setup, whereas professional help earns its cost on complex wiring, extensive coverage, or a supported handover. Check permissions before buying, compare written total-cost quotes, then make your final step a full test of every sensor, alert, and backup path.
Frequently Asked Questions
Most wireless kits go in within two hours, assuming the plan is already drawn and the Wi-Fi reaches every device position. A larger home, extra cameras, difficult walls, or any cable work will stretch a single afternoon into a weekend. Reserve the final half hour for testing every sensor rather than rushing it.
Yes, provided the equipment is designed for owner installation and local rules allow it. A wireless kit needs an app, basic mounting, and patience with testing. Hire a licensed professional for mains-voltage work, an existing hardwired panel, or anything tied to life-safety equipment. Confirm landlord or HOA permission before drilling.
It depends on equipment, labor, monitoring, video storage, and local charges. Federal wage data put the median hourly pay for alarm installers at $27.13 in May 2023, which helps sanity-check a labor line on a quote. Monitoring is usually the larger figure, so price the whole contract term rather than the first month.
Possibly, and the answer is local rather than national. Many cities require registration before a monitored system can request police dispatch, then charge annual renewal plus escalating false-alarm fees. Fredericksburg, Virginia charges $40 a year, while Marina, California charges $25 to register. Ask your own municipality first.
Cover a high-traffic path rather than an entire room, usually from a corner with a clear sightline across the route an intruder has to take. Keep the detector away from direct sunlight, heating vents, radiators, which are the usual causes of afternoon false alarms. Follow the device’s own mounting height guidance.
Wireless is usually easier to retrofit, since it avoids long cable runs through finished walls, though it depends on batteries and radio coverage you need to test. Wired systems suit planned construction or renovation, where concealed low-voltage routes cost little to add. Both designs want a tested answer for what happens when the signal drops.
It depends on the model and its backup options. Some keep local siren and keypad functions, or fall back to cellular communication on a backup battery, whereas others lose alerts entirely. Check the manufacturer’s documented outage behavior, then test it safely by unplugging the hub and watching what reports.
This article is for general information. Follow the installation instructions supplied with your own equipment, plus any applicable local code. Hire a licensed professional for mains-voltage work.
References
1. False Alarm Reduction Association. A Consumer Guide to Purchasing a Burglar Alarm System and Understanding False Alarms. https://www.mynewcastleny.gov/DocumentCenter/View/260/A-Consumer-Guide-to-Purchasing-a-Burglar-Alarm-System-PDF
2. Federal Trade Commission. Securing Your Internet-Connected Devices at Home. https://consumer.ftc.gov/articles/securing-your-internet-connected-devices-home
3. North Carolina Department of Public Safety. Theft Prevention: Tips for Securing Your Home. https://www.ncdps.gov/blog/2020/01/29/theft-prevention-tips-securing-your-home
4. Center for Problem-Oriented Policing, Arizona State University. Burglary of Single-Family Houses. https://popcenter.asu.edu/content/burglary-single-family-houses-summary
5. U.S. Bureau of Labor Statistics. Occupational Employment and Wage Statistics: Security and Fire Alarm Systems Installers, May 2023. https://www.bls.gov/oes/2023/May/oes492098.htm
8. City of Marina, California. Alarm Permits: registration, renewal, and false alarm fees. https://cityofmarina.org/1084/Alarm-Permits
