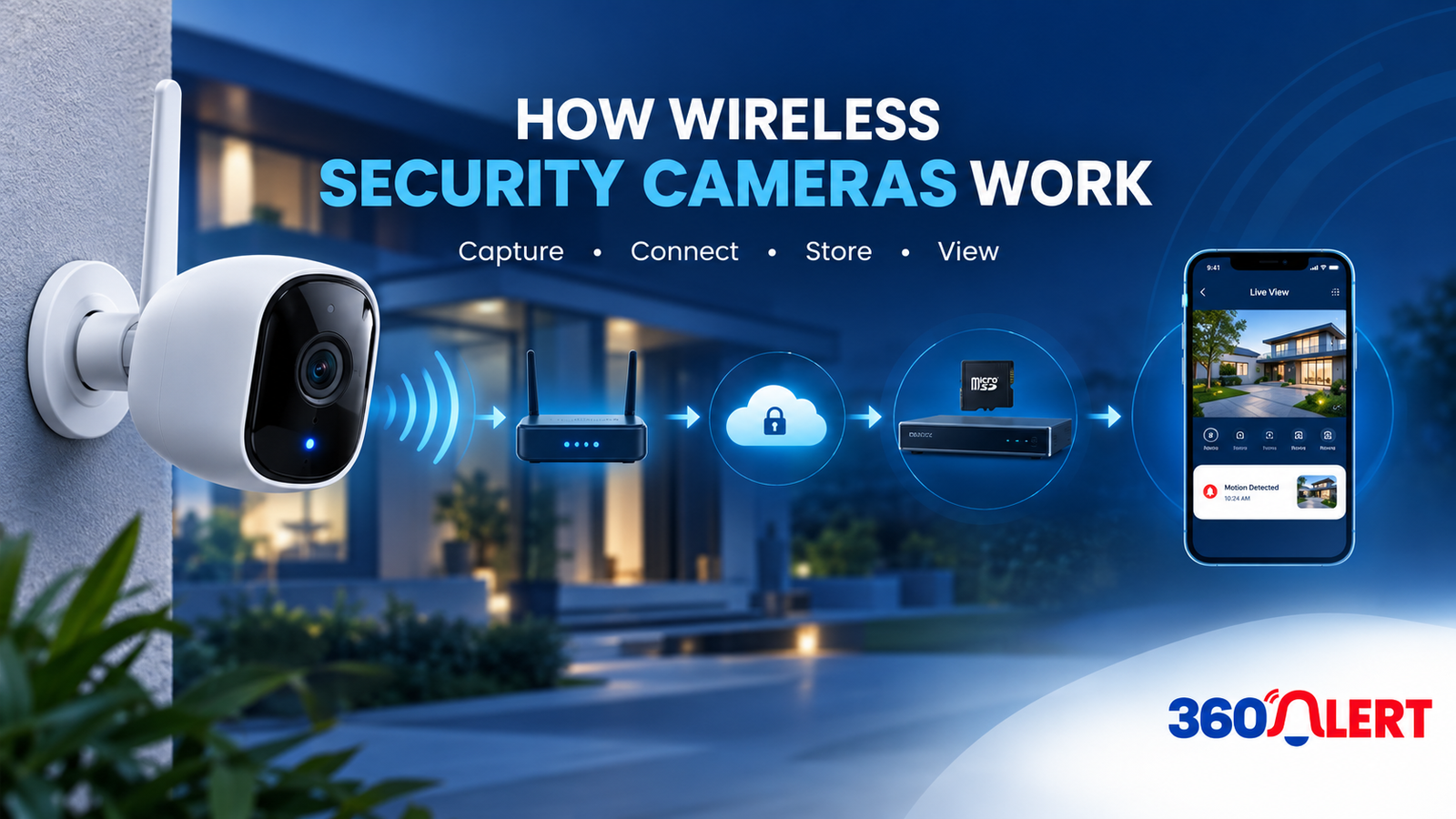

Wireless security cameras capture a scene through a lens and image sensor, process and compress the video, then transmit it over Wi-Fi or cellular to local storage, cloud storage, or an app. You can view live footage or saved clips on a phone, tablet, or computer. “Wireless” describes the data connection, not necessarily the power source: many cameras still plug into an outlet, while wire-free models use batteries or solar charging. The exact path depends on the camera’s connection, recording mode, and storage plan.
Capture: The lens and sensor turn light into digital video; some cameras also capture audio.
Send: The camera compresses the video and sends it over Wi-Fi or cellular.
Review: Footage is saved locally or in the cloud and viewed through an app.

Wireless vs. Wire-Free vs. Wi-Fi vs. IP Cameras

These labels describe different things. A wireless camera sends video without a wired network connection; it may still need an electrical cable. A wire-free camera has no cable for network or power, typically because it uses a battery. Wi-Fi is one kind of wireless networking, while cellular cameras use a mobile network instead. Reolink distinguishes wireless cameras from the narrower Wi-Fi category and notes that cellular models use a SIM and mobile data.

Term	What it means	What to check
Wireless	Video travels over radio rather than a dedicated video cable.	Does it still need AC power?
Wire-free	Data is wireless, and the camera runs on a battery, sometimes with solar charging.	Battery charging and recording mode.
Wi-Fi camera	Joins a home or business Wi-Fi network.	Router compatibility and signal at the mounting point.
Wireless IP camera	A network camera that sends digital video wirelessly; “IP” refers to Internet Protocol, not weatherproofing.	Network, app, and storage compatibility.
Wired camera	Uses a cable for some or all connectivity; Power over Ethernet (PoE) can carry power and data on one Ethernet cable.	Cable route and backup power.
Wireless CCTV	A broad term for video-surveillance cameras that transmit without a wired video connection.	Whether the system uses Wi-Fi, cellular, or a proprietary link.

Ethernet and coaxial cables remain common wired alternatives. “Security cameras wireless” is often used as shorthand for cameras with wireless video transmission, not necessarily cameras with no wires at all.

Inside a Wireless Security Camera

A wireless camera is a small imaging, computing, networking, and (sometimes) recording system. A manufacturer’s specification page for one battery camera, for example, lists a CMOS image sensor, lens, antenna, microphone, PIR sensor, H.265 compression, Wi-Fi, battery, and microSD slot.

Component	Job
Lens	Focuses light onto the sensor; focal length and field of view shape what the camera can see.
Image sensor	Converts incoming light to an electronic image. CMOS sensors are common; CCD is another sensor type.
Processor / ISP	Processes image data, adjusts the picture, runs detection features, and encodes video.
Wi-Fi or cellular radio and antenna	Sends data to a router, hub, or cellular network.
Microphone and speaker	Capture sound and enable two-way audio on models that support it.
Motion sensor	Detects activity; a PIR sensor responds to changes in infrared energy, while software may detect pixel changes in the image.
Power supply and battery	Keeps the camera operating; the data link can be wireless even when power is wired.
microSD slot	Provides local recording on supported models.

The parts and capabilities vary. One current model specification lists a 1/2.7-inch CMOS sensor, H.265 encoding, two-way audio, motion-triggered recording, and local microSD storage, illustrating how these modules work together.

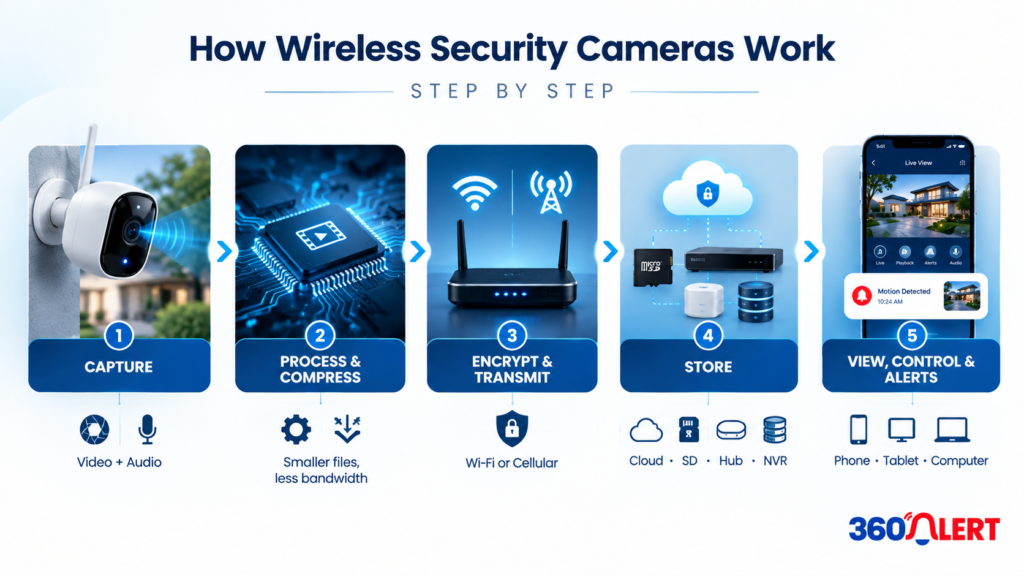

How Wireless Security Cameras Work, Step by Step

Here is the signal path in a typical Wi-Fi camera setup. Cellular cameras replace the home router step with a mobile network; hub systems insert a base station between the camera and the network or storage.

Scene + sound
    ↓
Lens + image sensor + microphone
    ↓
Image processing + video compression + motion analysis
    ↓
Encrypted wireless link (Wi-Fi → router, or cellular → carrier)
    ↓
Local storage / hub / cloud service
    ↓
Phone, tablet, or computer: live view, playback, controls, alerts

1. Capture: lens, sensor, and audio

The lens focuses light on an image sensor. The sensor converts that light into image data, and the camera’s electronics assemble successive frames into video. If the camera has a microphone, it can capture audio alongside the picture. Sensors and microphones are standard items in manufacturer camera specifications.

2. Process and compress

The camera’s processor adjusts and encodes the video before sending or saving it. H.264 and H.265 are compression formats: they reduce the data needed to represent video, helping manage network bandwidth and storage. Reolink identifies H.264 and H.265 as supported compression formats across its camera range, and ITU-T describes H.265 as a high-efficiency video-coding standard intended for applications including Internet streaming and digital storage.

Compression does not make bandwidth irrelevant. Higher resolution, frame rate, scene movement, and quality settings can increase the amount of data a camera needs to send. If a link cannot keep up, the app may lower stream quality, buffer, or disconnect. The useful number is the camera maker’s recommended upload bandwidth per camera, plus the actual upload capacity available at the camera’s location.

3. Encrypt and transmit

During setup, a Wi-Fi camera is joined to the home network, usually by selecting the network name (SSID) in an app and entering its password or using a guided pairing method. Video then travels over the local wireless link. Wi-Fi security depends on the router and the device’s supported security modes; WPA3-Personal adds protection against password-guessing attempts, according to Wi-Fi Alliance.

Wi-Fi encryption protects the wireless network link, but it is not a guarantee that every part of a camera’s data path or account is secure. The manufacturer’s app, cloud service, account settings, and device software also matter.

4. Route to storage or your phone

The router forwards traffic within the home network or out to the internet, depending on the camera and requested service. Some systems use a base station as a relay and storage point; others connect directly to Wi-Fi. A cloud-enabled camera uploads clips or streams to the provider’s service, while a camera with an microSD card can record to the card. Some systems support local and cloud copies. Arlo describes its SmartHub/Base Station as offering a separate camera network and local storage for compatible devices.

5. View, control, and receive alerts

The app can request a live stream, play saved clips, change settings, or send a command such as turning on a light. When motion is detected, the camera may record a clip and send a push notification; network conditions and the device’s wake-up behavior affect how quickly that alert arrives. Two-way audio sends your voice from the app back to the camera speaker, so delays can occur when either direction has a weak connection.

How Wireless Cameras Connect: Wi-Fi, Cellular, and Hubs

Wi-Fi security cameras

A security camera on Wi-Fi connects to a router over a supported band. Many models support 2.4 GHz, some support 5 GHz, and dual-band models can use either. A manufacturer specification for Reolink’s Argus PT Ultra lists both 2.4- and 5-GHz operation.  Check the individual camera’s band support before buying; some devices require 2.4 GHz during pairing.

The router’s signal at the camera matters more than the advertised maximum range. Exterior walls, metal, distance, neighboring networks, and router placement can weaken the connection. Test the camera at its intended mounting location before drilling. A mesh node or extender may help if it provides a stable signal there. Upload bandwidth is also shared: as a practical example, Arlo lists a minimum sustained upload speed of 1 Mbps per Essential wire-free camera, but requirements differ by model and stream quality.

Cellular security cameras

Cellular security cameras use a SIM or embedded mobile connection to send data through a carrier network, making them useful where Wi-Fi is unavailable but cellular coverage exists. Reolink’s 4G LTE camera documentation describes SIM-based mobile-network access and monthly data plans. Confirm current carrier support, coverage, data allowance, and recurring cost before choosing one. Do not assume an older 3G-capable product will connect: verify the model’s currently supported network bands and carrier compatibility.

Base stations and hubs

A hub can coordinate cameras, create a separate link, or store footage locally. It is not universal: Arlo says a SmartHub/Base Station is optional for its Essential wire-free line, which can connect directly to a 2.4 GHz Wi-Fi router.  Other wireless camera systems may require a hub or use one to add local storage or recording features. Check model compatibility before combining products from different lines.

Bluetooth may help pair a camera during setup; Zigbee and Z-Wave are mostly smart-home control protocols rather than typical high-bandwidth video links. Some specialized surveillance systems use purpose-built radio links; Wi-Fi is not the only possible wireless transport.

How Wireless Cameras Get Power

The word “wireless” usually refers to data, not power. Plug-in Wi-Fi cameras use an outlet for continuous power; wire-free models use rechargeable or replaceable batteries, and some accept a compatible solar panel. Battery cameras often sleep between events to conserve energy, while plug-in models are better suited to continuous operation.

Power option	Best fit	Trade-off
Plug-in AC	Indoor or outdoor position near power	Continuous power, but outlet and cable placement constrain mounting.
Rechargeable battery	Locations without an outlet	Flexible installation, but battery life depends on activity, settings, and temperature.
Solar panel	Sunny outdoor locations	Can reduce manual charging; performance depends on sunlight and compatibility.
PoE (wired contrast)	Permanent installations	One Ethernet cable can provide both data and power.

In an outage, a battery camera may continue recording if it still has power, but remote viewing may fail if the router or internet connection is also down. A battery backup for the router or hub can preserve more of the system.

Where Wireless Camera Footage Is Stored

Storage may be on a microSD card in the camera, a hub/base station, a network video recorder (NVR), or a cloud service. Some setups combine local and cloud copies. Arlo documents local hub storage as a second storage location or, in certain configurations, primary storage.

Storage	Internet needed?	Typical consideration
microSD	Not necessarily for local recording	Card capacity, compatibility, overwrite settings, and camera access.
Hub/base station	Usually local network access	Check device compatibility and whether recordings remain accessible during an internet outage.
NVR/DVR	Depends on system configuration	NVRs record network video; DVRs are commonly associated with analog camera systems.
Cloud	Yes, for upload and remote service	Subscription, upload use, retention period, and provider account security.

A local card can keep recording through an internet outage if the camera, card, and local recording function remain powered and active; remote viewing and cloud uploads generally need a working network connection. Storage duration is not fixed: it depends on resolution, bitrate, recording schedule, motion activity, and card capacity. For continuous recording, choose storage intended for sustained video writing. Samsung’s PRO Endurance datasheet reports endurance values under a specific Full HD recording test condition and notes that actual support varies by host device and use, so those figures should not be treated as a universal camera guarantee.

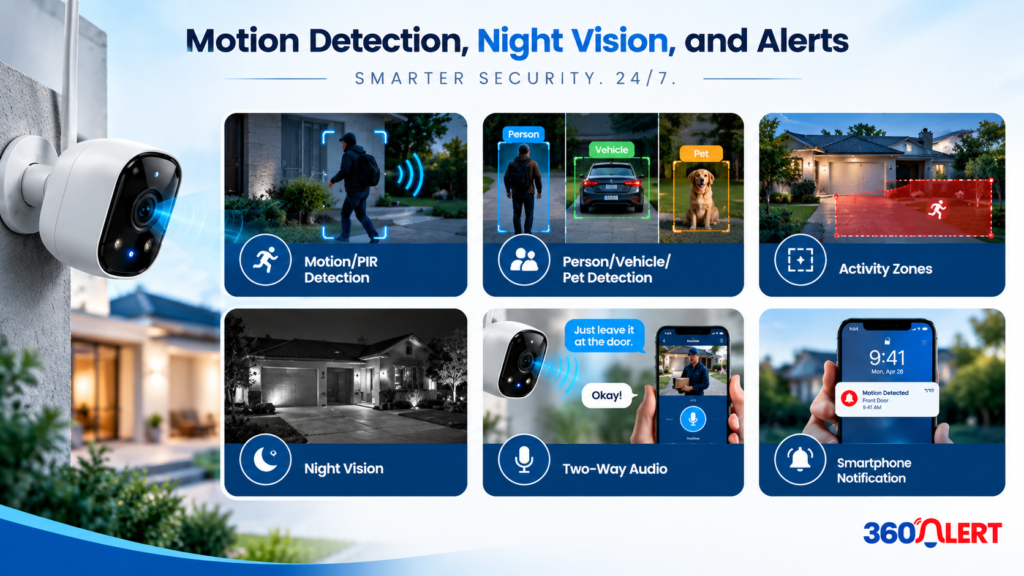

Motion Detection, Night Vision, and Alerts

Motion detection can be based on changes in the image or on a separate sensor such as passive infrared (PIR), which senses changes in infrared energy. Camera software may classify detected events, such as people, vehicles, or pets, when the model supports those features. A representative camera specification lists PIR plus human, vehicle, and pet detection, along with motion-triggered recording.

Activity zones and privacy masks help focus alerts on relevant areas or exclude parts of the frame. At night, infrared LEDs support monochrome night vision; visible-light spotlights can enable color footage on some cameras. Two-way audio combines a microphone and speaker for conversation, while geofencing can automate camera modes based on a phone’s location. Feature availability varies by model and app, so review settings rather than assuming a feature is included.

Are Wireless Security Cameras Secure?

Wireless cameras can be protected, but no single setting makes the whole system invulnerable. Use a unique router password, enable WPA2 or WPA3 where supported, change default camera credentials, turn on two-factor authentication when offered, install firmware updates, and secure the account used for cloud access. Wi-Fi Alliance says WPA3-Personal provides stronger protection against password-guessing attempts.

The FCC’s voluntary U.S. Cyber Trust Mark program is intended to help consumers assess security-related product information, including software-update practices and support periods; internet-connected home security cameras are among the product types that may qualify. Check the current product registry and label details rather than treating a logo or any one certification as a guarantee against every risk.

Wireless signals can be disrupted, including deliberately, but wired systems are not invulnerable: power loss, cut cables, recorder theft, and compromised network accounts remain possible. For privacy, avoid pointing cameras into neighbors’ private spaces, restrict household access to accounts, and check local rules on audio recording and notification before recording others.

Wireless vs. Wired Security Cameras

Factor	Wireless	Wired
Installation	Often simpler to place; Wi-Fi setup and power may still be needed.	Cable routing takes more work; PoE can combine power and network.
Reliability	Depends on radio signal, network load, and power.	A dedicated cable can provide a stable link, but cables and power can fail.
Video quality	Limited by the model and available network bandwidth.	Also model-dependent; a cable does not automatically mean higher image quality.
Cost	May include cloud fees, batteries, or cellular data.	May need cabling, a recorder, or installation costs.
Tampering	Radio interference is a possible weakness.	Exposed cables can be cut; a protected recorder and backup power help.

Choose based on the site, recording needs, and tolerance for maintenance—not the label alone. A wired system may suit continuous recording; a wireless camera system can be easier to retrofit or move.

Types of Wireless Security Cameras

Indoor cameras monitor rooms; wireless outdoor cameras are designed for exposure to weather; doorbell cameras combine a camera, doorbell, and intercom; battery/solar models reduce the need for nearby power; and cellular cameras work in remote areas with compatible mobile coverage. Brand examples include Ring and Nest Cam indoor/outdoor models, Arlo Go 2 cellular-capable cameras, Eufy local-storage systems, and SimpliSafe cameras; features and network requirements differ by model.

For outdoor installation, read the exact ingress-protection (IP) rating in the product documentation. IEC 60529 defines the IP Code classification for degrees of protection provided by electrical equipment enclosures; an IP rating is not a guarantee that every installation condition is suitable.

How to Install Wireless Security Cameras

Follow the manufacturer’s installation steps; these general steps help avoid common placement and connection problems:

1. Choose a view. Cover entrances and approach paths without pointing into private neighboring areas.
2. Check power and signal. Confirm an outlet, battery access, or solar exposure; test Wi-Fi or cellular service where the camera will sit.
3. Pair in the app. Create or sign in to the account, add the device, and follow the model’s QR code, Bluetooth, or Wi-Fi setup prompts.
4. Set security and recording. Use a strong, unique password, update firmware, choose local/cloud storage, and set motion zones and alert preferences.
5. Mount securely. Use a stable surface and the supplied mount; renters should get permission before drilling or altering fixtures.
6. Test day and night. Check live view, playback, notifications, two-way audio, and the camera’s final wireless signal before finishing.

Common Problems and Fixes

Problem	First thing to try
The camera goes offline.	Check power, router status, Wi-Fi password, and app/device compatibility.
Live video lags.	Improve signal, reduce stream quality, or check household upload use.
Interference or dead zone	Reposition the router, mesh node, or camera; avoid placing the camera behind dense obstacles.
Battery drains quickly	Reduce unnecessary alerts, adjust sensitivity, review recording frequency, and check temperature/solar exposure.
False alerts	Narrow activity zones, lower sensitivity, or enable supported person/vehicle filtering.
The night image is poor.	Clean the lens, adjust the camera angle, and avoid pointing directly at reflective surfaces.

Pros and Cons

Pros	Cons
Flexible placement; often easier installation; app-based live view and alerts.	Wireless range and upload capacity matter; batteries need charging; cloud or cellular use may add recurring costs.
Local recording can continue without internet if the camera remains powered and local recording is configured.	Remote viewing and cloud upload typically stop when the internet connection is unavailable.

FAQs

Conclusion

If you’re asking how wireless security cameras work, the core process is capture, compression, wireless transmission, then storage and viewing. Wi-Fi suits locations with reliable home-network coverage; cellular suits places with compatible mobile service; and local, cloud, or hub storage each changes what remains available during an outage. Decide first where the camera must see, how it will be powered, and whether you need continuous or motion-triggered recording, then choose the system that fits those constraints.

References

• Federal Communications Commission. U.S. Cyber Trust Mark.
• International Electrotechnical Commission. IEC 60529: Degrees of protection provided by enclosures (IP Code).
• International Telecommunication Union. ITU-T H.265: High-efficiency video coding.
• Reolink. How Does a Wireless Security Camera Work?.
• Reolink Support. Argus PT Ultra specifications: Introduction to the Video Format of Reolink Cameras.
• Reolink. How Do Security Cameras Get Power?.
• Arlo Support. Essential Wire-Free Camera Series FAQ: SmartHub and Base Station benefits.
• Samsung. PRO Endurance microSD Card Data Sheet.
• Wi-Fi Alliance. Security and WPA3.
• IEC 60529, ITU-T H.265, FCC, and Wi-Fi Alliance citations above were checked alongside manufacturer product/support documentation. Product features and service availability may change by model, region, and date.
